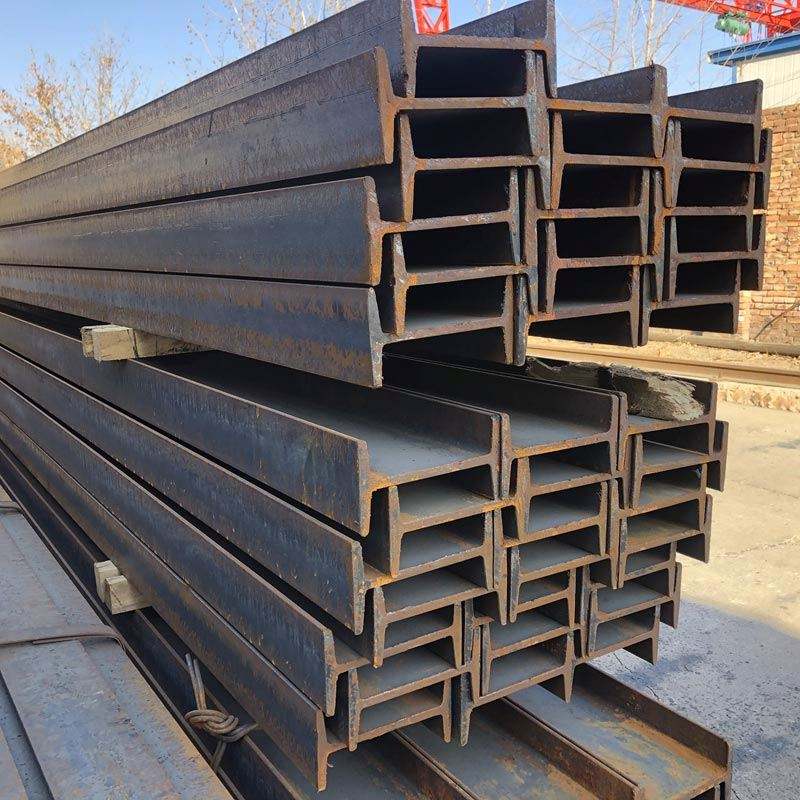

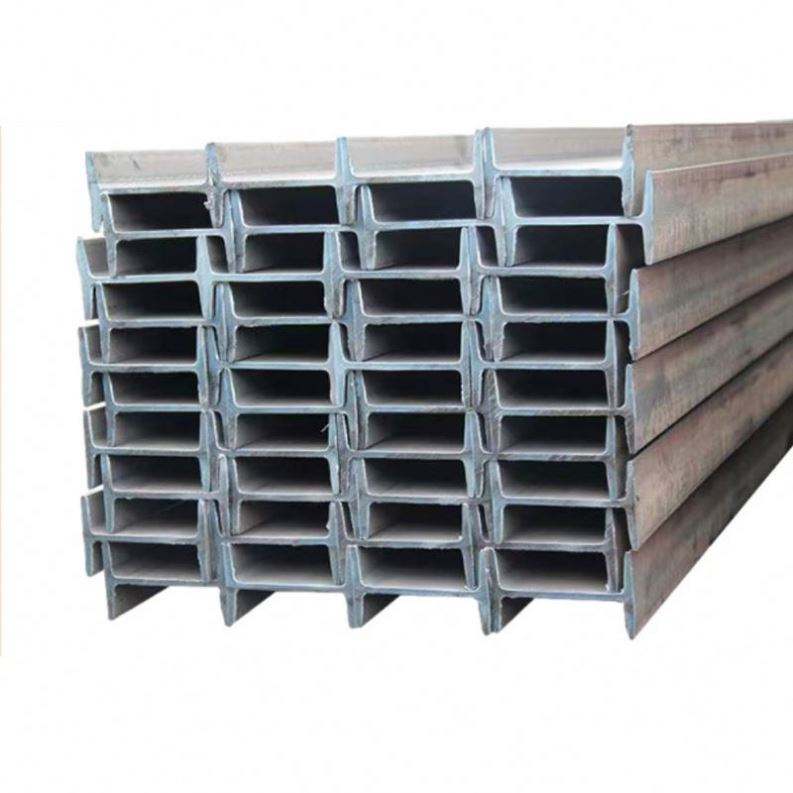

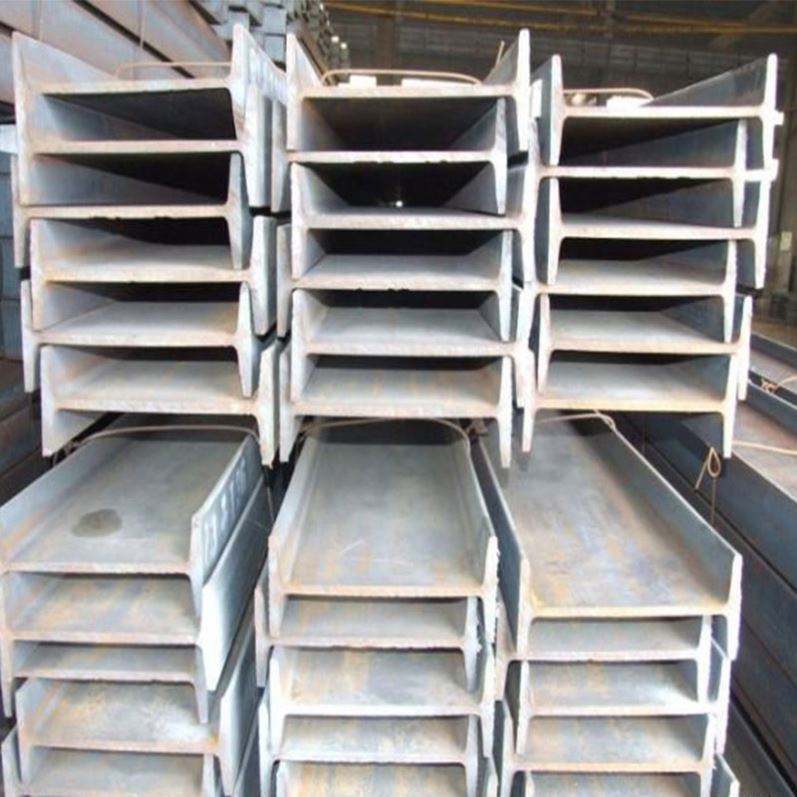

I Beam(GB)
| Type | H×B (mm) | Web thickness (mm) | Flange thickness (mm) | GB Weight (kg/m) | Available Length |
|---|---|---|---|---|---|
| 10 | 100×68 | 4.5 | 7.6 | 11.261 | 6-16m |
| 12 | 120×74 | 5.0 | 8.4 | 13.987 | 6-16m |
| 14 | 140×80 | 5.5 | 9.1 | 16.89 | 6-16m |
| 16qa | 160×88 | 5.4 | 8.9 | 18.631 | 6-16m |
| 16 | 160×88 | 6 | 9.9 | 20.513 | 6-16m |
| 18qa | 180×94 | 6 | 9.7 | 22.223 | 6-16m |
| 18 | 180×94 | 6.5 | 10.7 | 24.143 | 6-16m |
| 20qa | 200×100 | 6.5 | 10.4 | 25.860 | 6-16m |
| 20a | 200×100 | 7 | 11.4 | 27.929 | 6-16m |
| 20b | 200×102 | 9 | 11.4 | 31.069 | 6-16m |
| 22qa | 220×110 | 7 | 11.3 | 30.792 | 6-16m |
| 22a | 220×110 | 7.5 | 12.3 | 33.070 | 6-16m |
| 22b | 220×110 | 9.5 | 12.3 | 36.524 | 6-16m |
| 25qa | 250×116 | 8 | 11 | 34.831 | 6-16m |
| 25a | 250×116 | 8 | 13 | 38.105 | 6-16m |
| 25b | 250×118 | 10 | 13 | 42.030 | 6-16m |
| 28qa | 280×122 | 8 | 12.7 | 40.840 | 6-16m |
| 28a | 280×122 | 8.5 | 13.7 | 43.492 | 6-16m |
| 28b | 280×124 | 10.5 | 13.7 | 47.888 | 6-16m |
| 30a | 300×126 | 9 | 14.4 | 48.084 | 6-16m |
| 30b | 300×128 | 11 | 14.4 | 52.794 | 6-16m |
| 30c | 300×130 | 13 | 14.4 | 57.504 | 6-16m |
| 30T | 300×128 | 12 | 20 | 64.600 | 6-16m |
| 32qa | 300×130 | 9 | 14 | 49.835 | 6-16m |
| 32a | 320×130 | 9.5 | 15 | 52.717 | 6-16m |
| 32b | 320×132 | 11.5 | 15 | 57.741 | 6-16m |
| 32c | 320×134 | 13.5 | 15 | 62.765 | 6-16m |
| 36qa | 360×136 | 9.5 | 14.8 | 56.931 | 6-16m |
| 36a | 360×136 | 10 | 15.8 | 60.037 | 6-16m |
| 36b | 360×138 | 12 | 15.8 | 65.689 | 6-16m |
| 36c | 360×140 | 14 | 15.8 | 71.341 | 6-16m |
| 40a | 400×142 | 10.5 | 16.5 | 67.598 | 6-16m |
| 40b | 400×144 | 12.5 | 16.5 | 73.878 | 6-16m |
| 40c | 400×146 | 14.5 | 16.5 | 80.158 | 6-16m |
| 45a | 450×150 | 11.5 | 18 | 80.420 | 6-16m |
| 45b | 450×152 | 13.5 | 18 | 87.485 | 6-16m |
| 45c | 450×154 | 15.5 | 18 | 95.550 | 6-16m |
| 50a | 500×158 | 12 | 20 | 93.654 | 6-16m |
| 50b | 500×160 | 14 | 20 | 101.504 | 6-16m |
| 50c | 500×162 | 16 | 20 | 109.354 | 6-16m |
| 56a | 560×166 | 12.5 | 21 | 106.316 | 6-16m |
| 56b | 560×168 | 14.5 | 21 | 115.108 | 6-16m |
| 56c | 560×170 | 16.5 | 21 | 123.900 | 6-16m |
| 63a | 630×176 | 13 | 22 | 121.407 | 6-16m |
| 63b | 630×178 | 15 | 22 | 131.298 | 6-16m |
| 63c | 630×180 | 17 | 22 | 141.189 | 6-16m |
I Beam(IPE)
| Type | H×B (mm) | Web thickness (mm) | Flange thickness (mm) | GB Weight (kg/m) | Available Length |
|---|---|---|---|---|---|
| IPE80 | 80×46 | 3.8 | 5.2 | 6.0 | 6-16m |
| IPE100 | 100×55 | 4.1 | 5.7 | 8.1 | 6-16m |
| IPE120 | 120×64 | 4.4 | 6.3 | 10.4 | 6-16m |
| IPE140 | 140×73 | 4.7 | 6.9 | 12.9 | 6-16m |
| IPE160 | 160×82 | 5.0 | 7.4 | 15.8 | 6-16m |
| IPE180 | 180×91 | 5.3 | 8.0 | 18.8 | 6-16m |
| IPE200 | 200×100 | 5.6 | 8.5 | 22.4 | 6-16m |
| IPE220 | 220×110 | 5.9 | 9.2 | 26.2 | 6-16m |
| IPE240 | 240×120 | 6.2 | 9.8 | 30.7 | 6-16m |
| IPE270 | 270×135 | 6.6 | 10.2 | 36.1 | 6-16m |
I Beam(IPEAA)
| Type | H×B (mm) | Web thickness (mm) | Flange thickness (mm) | GB Weight (kg/m) | Available Length |
|---|---|---|---|---|---|
| IPEAA80 | 78×46 | 3.2 | 4.2 | 4.95 | 6-16m |
| IPEAA100 | 97.6×55 | 3.6 | 4.5 | 6.72 | 6-16m |
| IPEAA120 | 117×64 | 3.8 | 4.8 | 8.36 | 6-16m |
| IPEAA140 | 136.6×73 | 3.8 | 5.2 | 10.05 | 6-16m |
| IPEAA160 | 156.4×82 | 4.0 | 5.6 | 12.31 | 6-16m |
| IPEAA180 | 176.4×91 | 4.3 | 6.2 | 14.94 | 6-16m |
| IPEAA200 | 196.4×100 | 4.5 | 6.7 | 17.95 | 6-16m |
